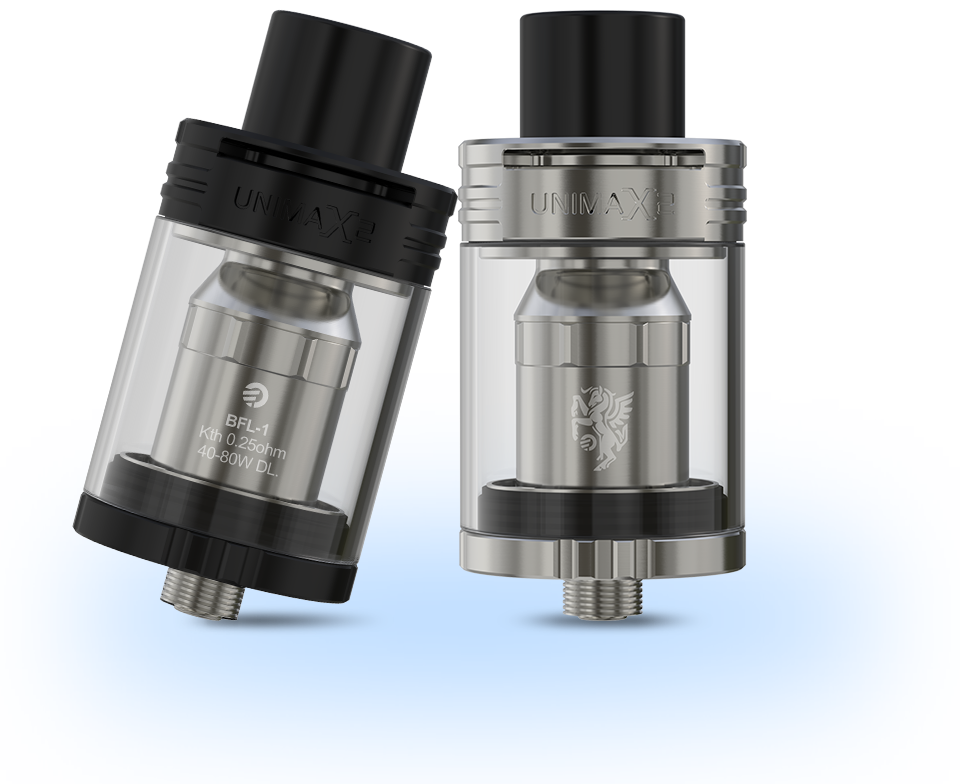

UNIMAX 2 Atomizer - Joyetech Electronic Cigarette

Having the distinct and prominent leak-resist cup design, the UNIMAX 2 atomizer completely keeps you away from leakage or flooding. It adopts the TFTA (top-filling and top-airflow) system where airflow control and e-liquid filling can be easily achieved by rotating or removing the top cap. With wide open structure, the BFL-1 (0.25ohm) head will surely satisfy you for cloud and flavor simultaneously. Meanwhile, the stainless steel and total detachable structure make the UNIMAX 2 atomizer a sensational masterpiece.

Parameter:

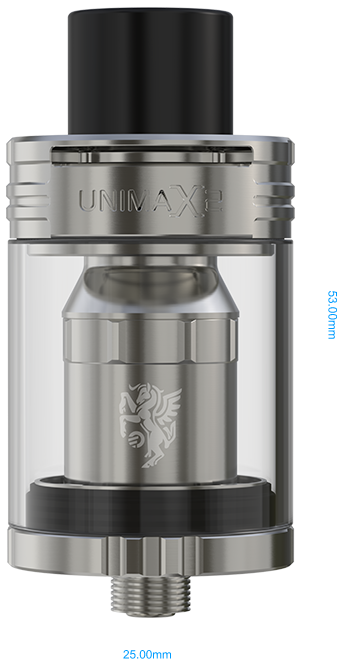

Size: 25.0mm*53.5mm
E-liquid capacity: 5.0ml
Applicable heads: BFL/BFXL coil heads
Applicable heads: BF series heads (exclusive BF RBA/LVC/QCS) with BF adapter
Mouthpiece: UNIMAX 2 mouthpiece/510 mouthpiece
Colors: Silver, Black
Standard Configuration:
1 * UNIMAX 2 atomizer
2 * BFL-1 (0.25ohm) head
1 * Spare glass tube
1 * Manual
1 * Warranty card
1 * Warning card
1 * Spare parts

Exclusive TFTA-Tank structure for easy operation

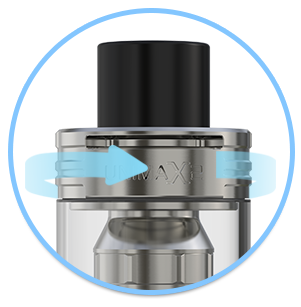

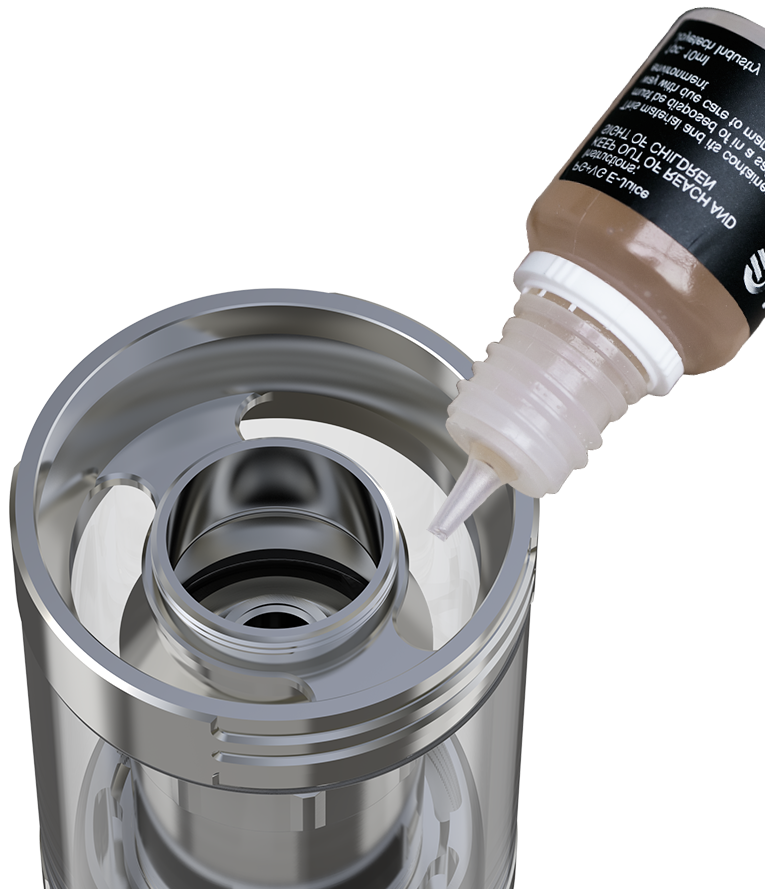

The Joyetech exclusive TFTA (top-filing and top-airflow) technology was perfectly applied into the UNIMAX 2 atomizer. Simply rotate the top cap to the left or right to adjust the airflow inlet. Unscrew the top cap and inject the e-liquid into the side holes from the top.

Flavor and cloud chasing

BFL-1 Kth 0.25ohm DL. head (40-80W)
The BFL-1 (0.25ohm) head, using Kanthal coil, is the perfect combination for cloud chasing and pure flavor. It can be used
under power mode with wattage setting at 40W to 80W. UNIMAX 2 Atomizer

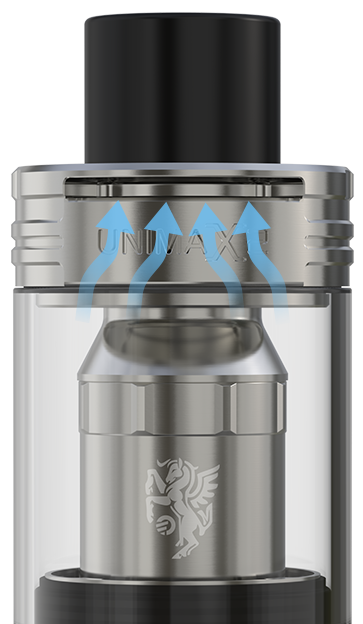

Large airflow and pure flavor
The UNIMAX 2 atomizer along with the newly constructed BFL coil head can ensure a large airflow inlet, producing a total pure flavor ever.

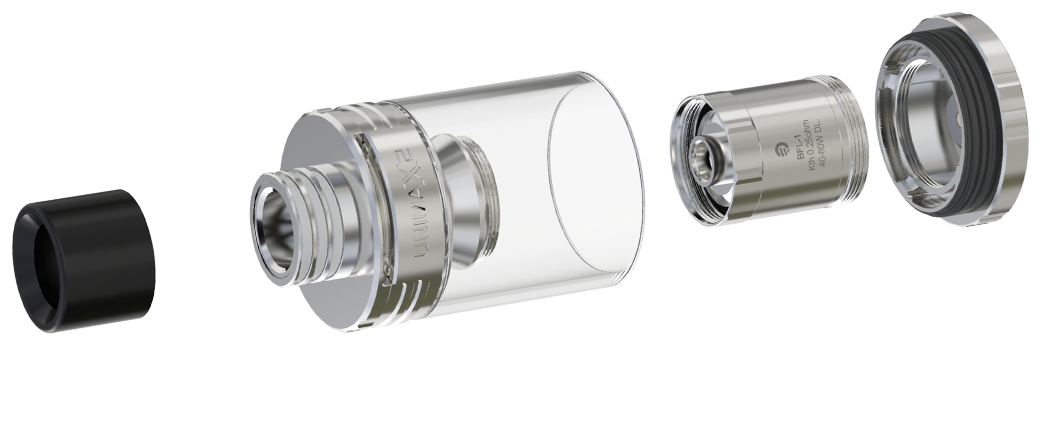

Detachable structure, easy to clean

The UNIMAX 2 atomizer can be totally detached thus to wash or replace easily.

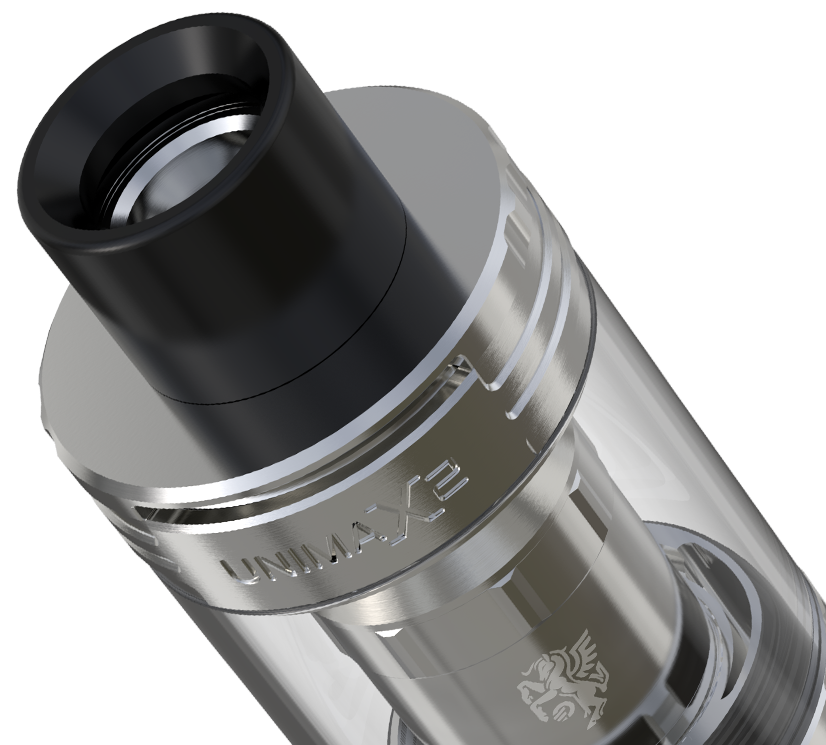

Choose your mouthpiece

It comes with the new UNIMAX 2 mouthpiece but can also go with normal 510 mouthpiece as well.

Atomizer head replacement

Unscrew the upper component, you'll find the atomizer head attached on the vent pipe. Remove the coil head to replace or clean.
(NOTE: Please do not wash the atomizer head with water. Simply scrub it with cotton or clean dry cloth.)
