eVic Basic with CUBIS Pro Mini - Joyetech Electronic Cigarette

CUBIS Pro Mini atomizer perfectly fits the eVic Basic, having Firmware V4.02 supporting Custom Logo and RTC (Real Time Clock) display with clock screen protection. E-juice filling can be easily achieved by simply removing the top cap and injecting into the side holes. The innovative CUBIS Pro Mini with leak resistant cup design allows you to enjoy the best vaping experience ever.

Standard Configuration:
1 * eVic Basic Battery
1 * CUBIS Pro Mini Atomizer
1 * BF SS316-0.5ohm DL.
1 * LVC Clapton-1.5ohm MTL.
1 * USB Cable
2 * User Manual
1 * Warranty Card
1 * Warning Card

Specification:

Size: 22.00*32.00*97.00mm
Battery Capacity: 1500mAh
Output Mode: RTC/VT (Ni/Ti/SS316)/VW/TCR/BYPASS Modes
Output Wattage: 1-40W
e-Juice Capacity: 2ml
Resistance Range: 0.05-1.5ohm for VT/TCR mode
Resistance Range: 0.1-3.5ohm for VW/BYPASS mode
Temperature Range: 100-315°C/ 200-600°F
Colors: Silver, Black, White, Red, Orange, Blue

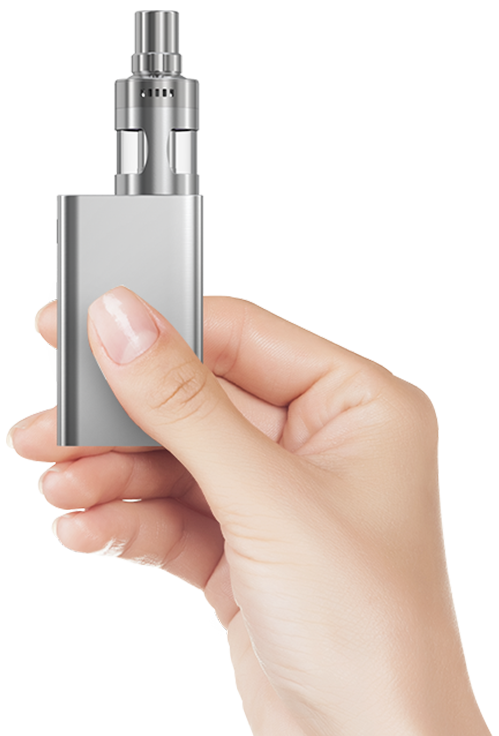

Compact Yet Powerful

The eVic Basic comes with a tiny shape, which is quite easy to grip. It is powered by a 1500mAh built-in battery,
whose maximum output can be reached to 40W.

Innovative Leak Resistant Cup Design

The completely leak resistant cup-style tank reservoir allows the top section and coil to be removed and as one solid unit.
Coil replacement and juice fill can be achieved by removing this top section from the cup.

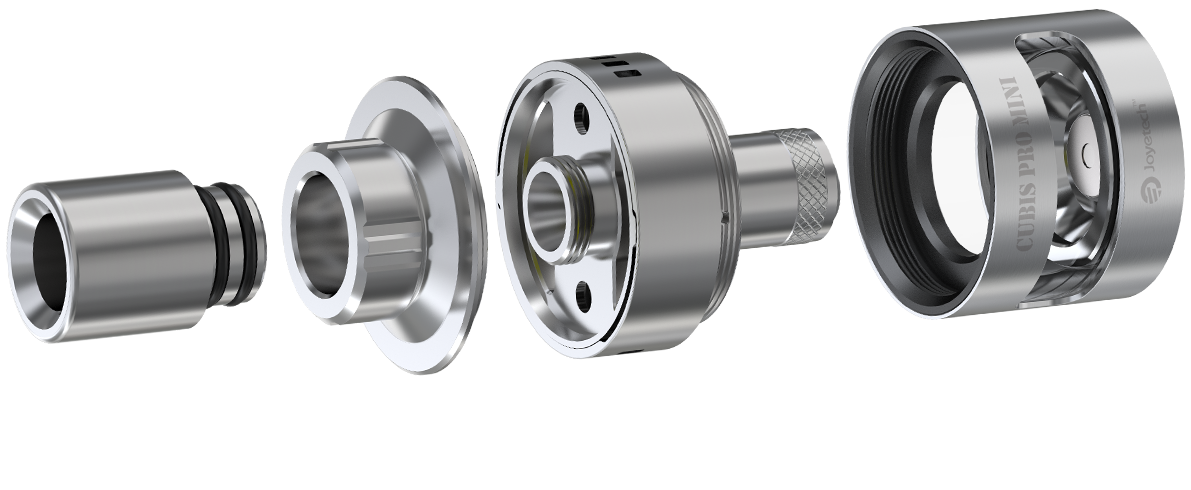

Detachable and Washable Structure

With its special structure, CUBIS Pro Mini atomizer can be easily detached and is able to wash separately.

SS316 0.5ohm DL. and LVC Clapton-1.5ohm Heads

SS316 0.5ohm DL. head can be used under Temp SS316 mode, VW mode and TCR mode as you prefer.

LVC (Liquid Valve Control) Clapton-1.5ohm head applies the liquid valve control system. Simply rotate the ring on the base to adjust the valve.

Dual Circuit Protection

eVic Basic applies two sets of battery protection circuit system, realizing overall battery protection of
over-charging, over-current and over-discharging, which makes it more safe and reliable.

Firmware Upgradeable

eVic Basic comes with the upgradeable firmware.
Having the latest Version 4.02, new interface, multiple modes and functions are available.

Exquisite 510 Stainless Steel Thread Applied with 510 stainless steel thread and wide border fitting for large capacity atomizers.

Bottom Ventilation Holes

The ventilation holes are placed on the bottom which can greatly help the device for better heat dissipation.

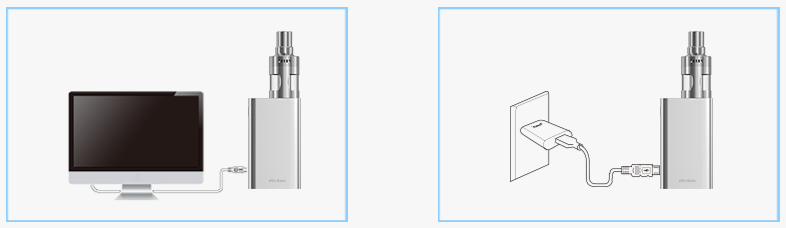

Charging & Upgrading

Simply connect the device with a micro USB cable to charge or upgrade your device. When it's fully charged, the charging indicator will go out.

Partners

Store Locator

Support

Online

SECURITY CODE

Check your security code to see if you have purchased the original Joyetech electronic cigarettes.

Go To Query

JOYETECH SUPPORT

Learn about Joyetech products, view online manuals, get the latest downloads.

Download

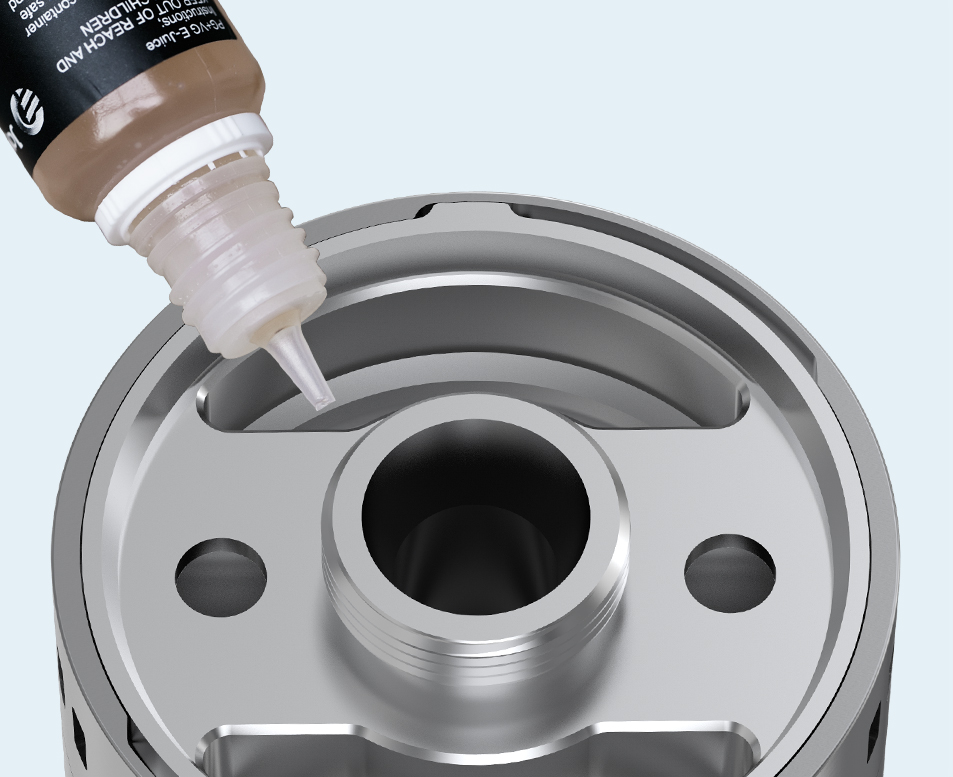

CUBIS Pro Mini atomizer adopts top filling and top airflow structure which enables you to refill the e-juice with great convenience.
	Simply uninstall the top cap from the airflow ring, then inject the e-juice into the two side holes (not the vent pipe) directly.
