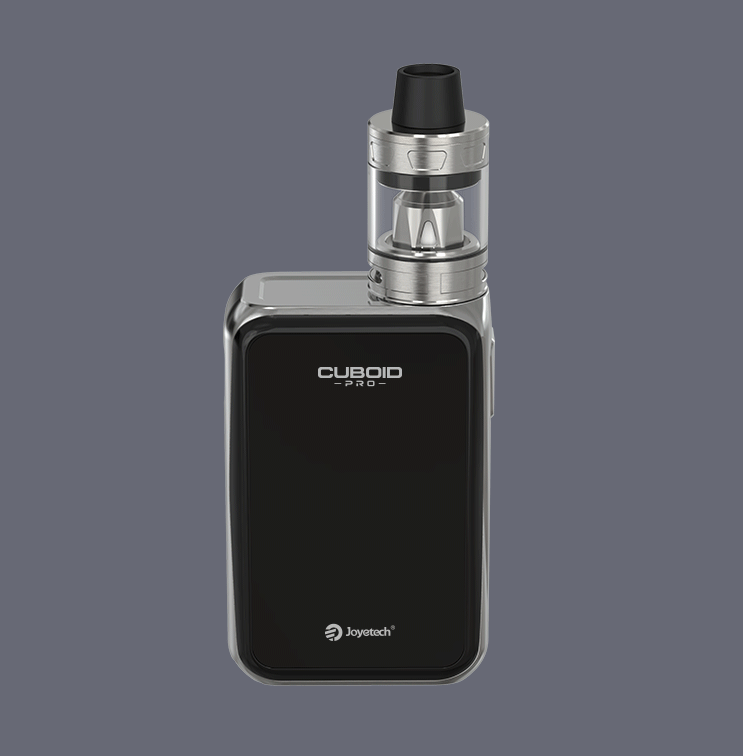

CUBOID Pro with ProCore Aries
Introducing the most advanced and powerful box mod with a large 2.4 inch TFT color display. Featuring an easy-to-access menu system on a fully responsive touchscreen, the CUBOID Pro presents all the vaping essentials as well as some unique cool features like changeable wallpaper, pedometer, preheat, reverse charging and over time protection. The ProCore Aries atomizer has an innovative flip-to-open top-fill system, allowing to refill the e-juice with great ease. ProC series heads provides plenty of options, from mouth to lung inhale to direct lung inhale, from massive vapor production to optimal flavor. Powered by dual 18650 batteries, the CUBOID Pro applies a sophisticated temperature control suite coupled with a 200W maximum output.
Standard Configuration:

1 * CUBOID Pro (no cell)
1 * ProCore Aries atomizer
1 * ProC1 (0.4ohm) head
1 * ProC4 (0.15ohm) head
1 * Spare glass tube
1 * QC USB cable
2 * Manual
1 * Warranty card
2 * Warning card
2 * Spare parts
Specification:
Mod size: 56.0mm(L)*30.0mm(W)*131.5mm(H)
Screen type: 2.4 inch TFT/CTP(Capacity Touch Panel) screen
Screen resolution: 320*240 dpi
E-liquid capacity: 4.0ml/2.0ml
Output wattage: 1-200W
Output mode: VW/VT(Ni, Ti, SS316)/TCR(M1, M2, M3) Mode
Features: responsive touch screen, well designed UI, easy-to-go interface, tap button, vibration motor, 2A quick charge, multi-protections, power bank, preheat, real-time clock, custom wallpaper
Resistance range: 0.05-1.5ohm for VT/TCR mode
Resistance range: 0.1-3.5ohm for VW mode
Temperature range: 100-315°C/ 200-600°F
Depth of 510 pins applicable: 4.0-5.5mm
Battery using: Dual replaceable high rate 18650 cells (CDC25A)
Colors: silver, black, red, yellow, blue
Max charging current: 2.0A
Max output current: 50A
Max output voltage: 9V
CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries
Advanced box mod with large touchscreen Having a large 2.4 inch touch screen coupled with an easy-to-go operation system, the CUBOID Pro advanced box mod is intuitively designed with the purpose for an ultimate vaping experience.

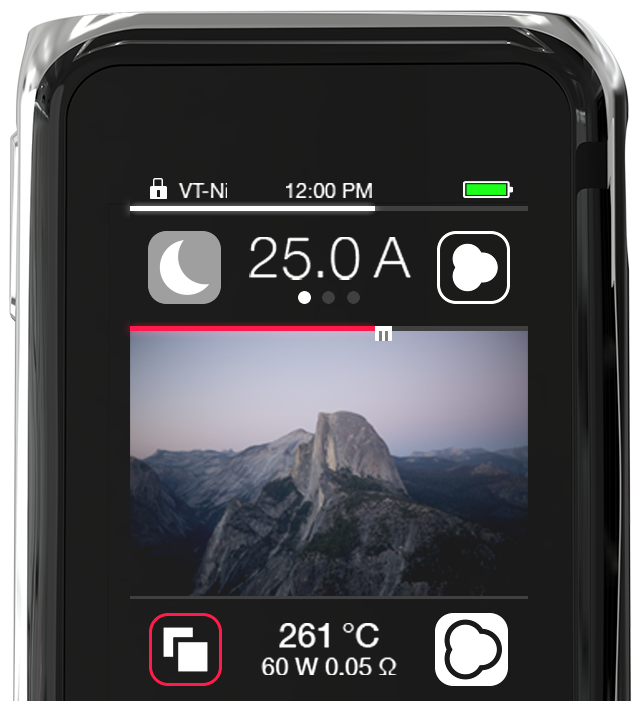

Interactive friendly user interface
The CUBOID Pro adopts an interactive friendly user interface, which is convenient and easy to master. Simply tap the cloud icon on the upper right to switch the modes. Click "+"/"-" to adjust the wattage or temperature. screen lock/unlock, stealth on/off, slide to switch (fire time/current/ohm), down button, wallpaper, system setting, puff and pedometer, current mode info, battery bar, up button, tap to switch modes, battery indication
Wallpaper and screensaver
The CUBOID Pro supports wallpaper display. Upload the photos (in jpg format with 240(W)*320(H) max pixel and saved as numbers from 01 to 100) with VT software.

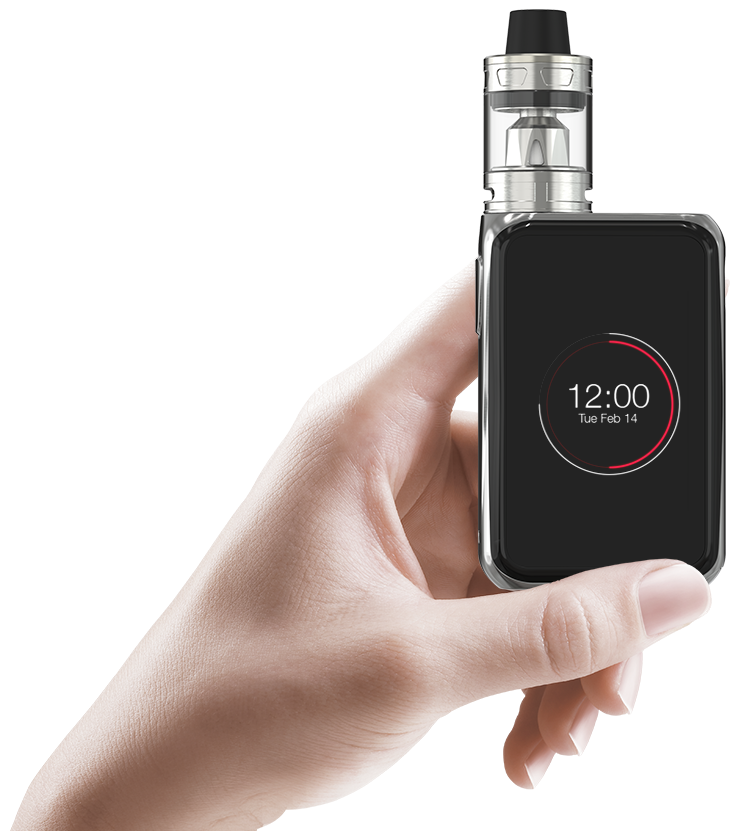

It also supports screensaver where you can set clock (digital/analog) or photos as you prefer.
CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries

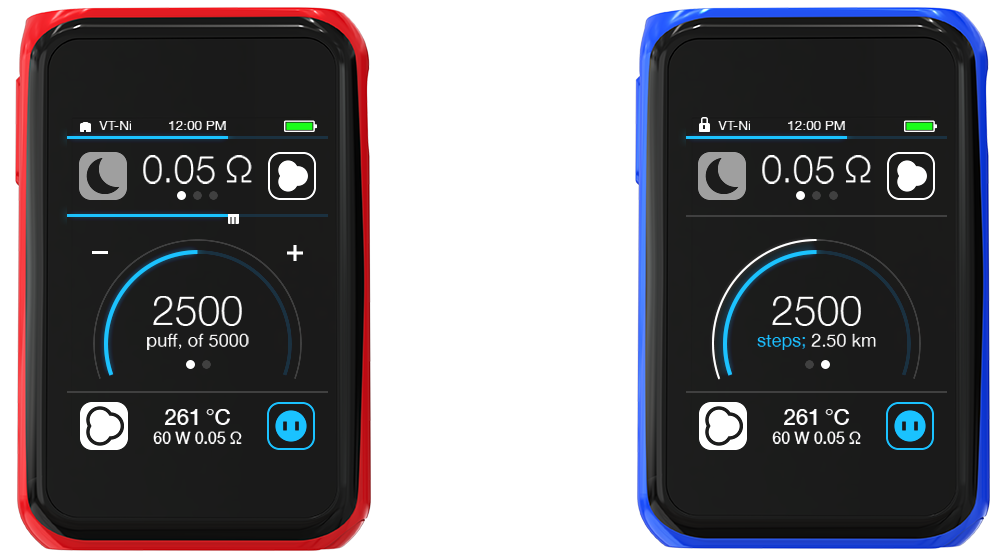

Track your habits
The CUBOID Pro box mod can help to track and control your daily puffs. It also comes with the pedometer function with which it records your daily activity.
CUBOID Pro with ProCore Aries
TAPTECTM technology changes what matters
Apart from the conventional fire button, we creatively bring you the tap button with
Joyetech TAPTECTM technology. Simply tap it, then it's all under your control.
Note: Under setting menu, click 'vapor hub' and then the 'TAP' option. There you can choose to turn on/off the tap fire button. CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries

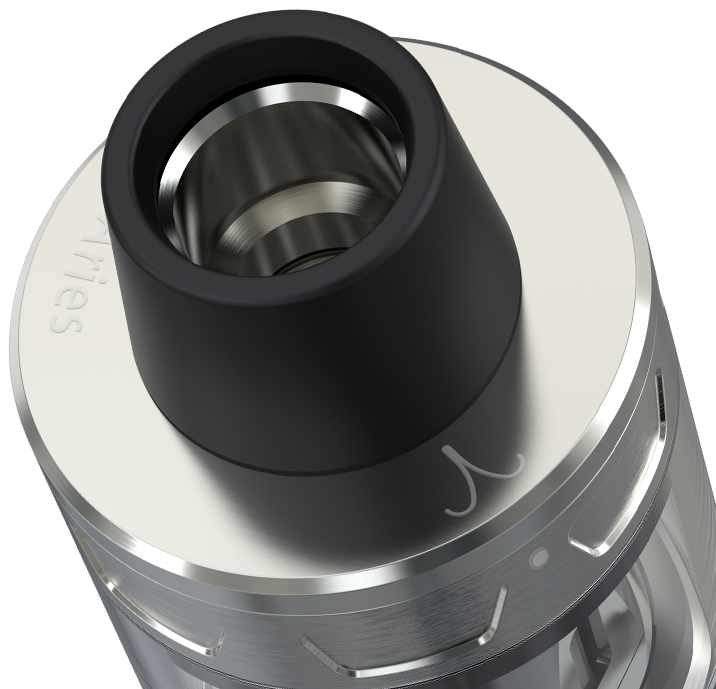

Flip type top-fill design

Simply push and pull the top cap to reveal the filling hole then you're free to fill the e-liquid. Simple and convenient.
CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries
200W powerful max output
The CUBOID Pro box mod is powered by dual replaceable 18650 batteries where maximum output can be reached to powerful 200W. We kindly recommend using high-rate 18650 cells with continuous discharge current (CDC)25A.
CUBOID Pro with ProCore Aries

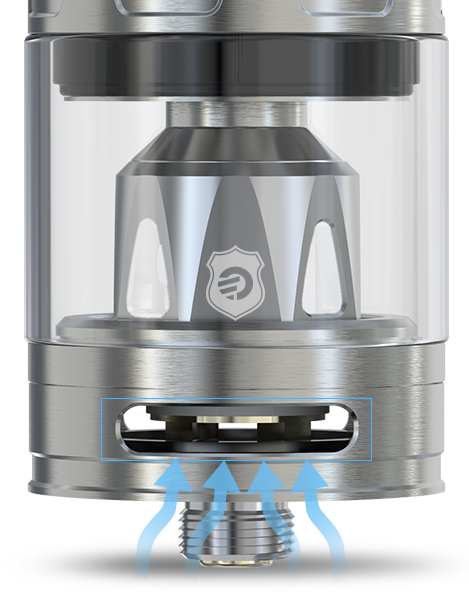

Balanced flavor and clouds
The bold airflow structure on the ProCore Aries atomizer was designed to deliver massive vapor production without
compromising its optimal flavor using with the brand-new ProC series heads.

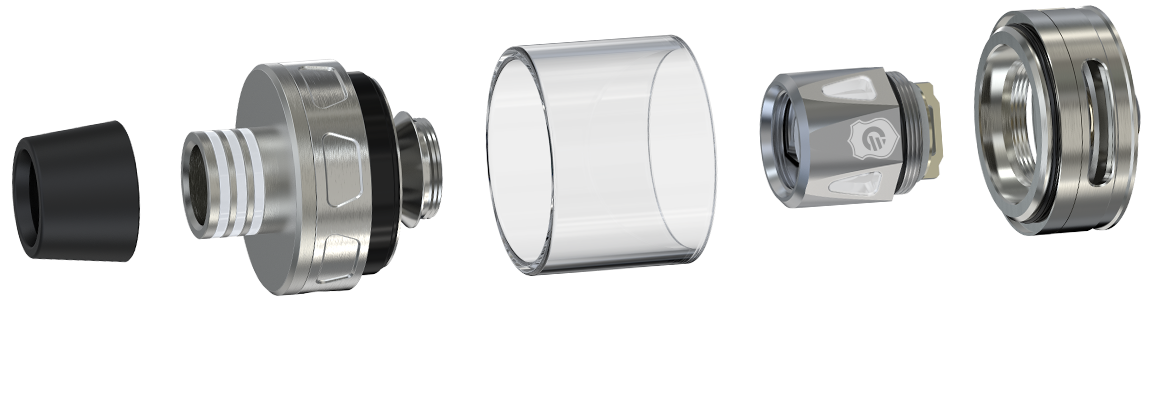

Detachable structure, easy to clean

The ProCore Aries atomizer can be easily detached and is able to wash separately.
CUBOID Pro with ProCore Aries

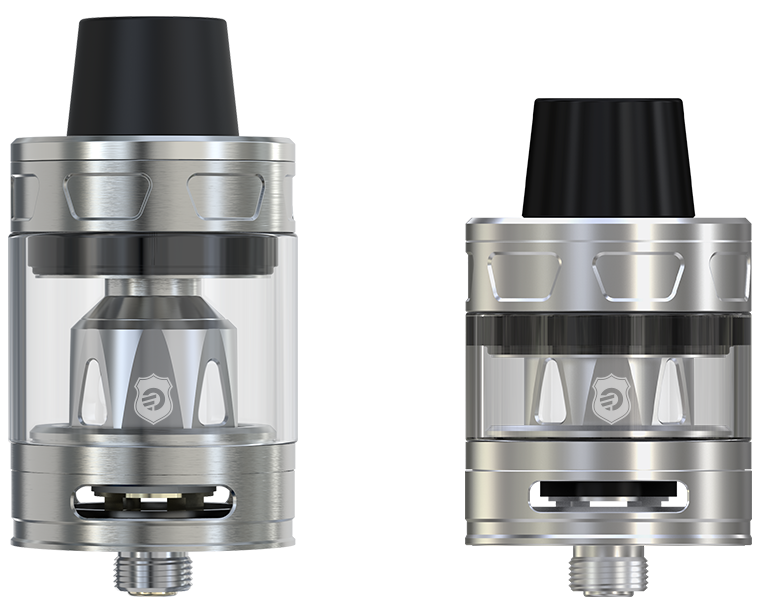

2ml version also included
Apart from the normal 4.0ml e-liquid capacity, we also have 2.0ml version which is TPD regulated.
CUBOID Pro with ProCore Aries

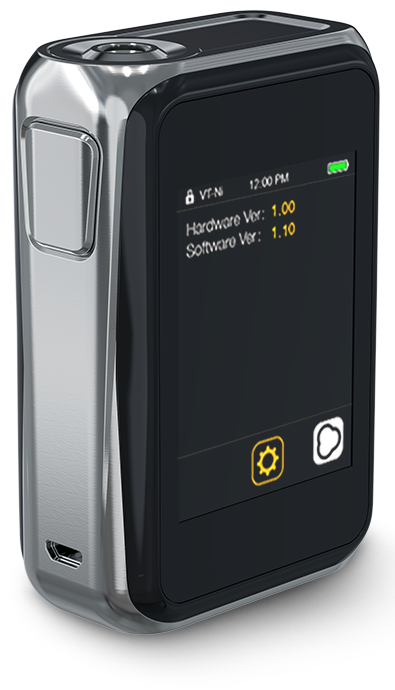

VT software for upgrading and uploading

Apart from system firmware upgrade, the VT Software for CUBOID Pro also includes photo uploading. You can check the software and hardware version in the system info.
CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries
CUBOID Pro with ProCore Aries
Applicable for various tanks
The exquisite spring loaded 510 connector on the CUBOID Pro is applicable for tanks with 510 length ranged at 4.0mm to 5.5mm. Tanks are also free to go up to 25mm diameter as you prefer.

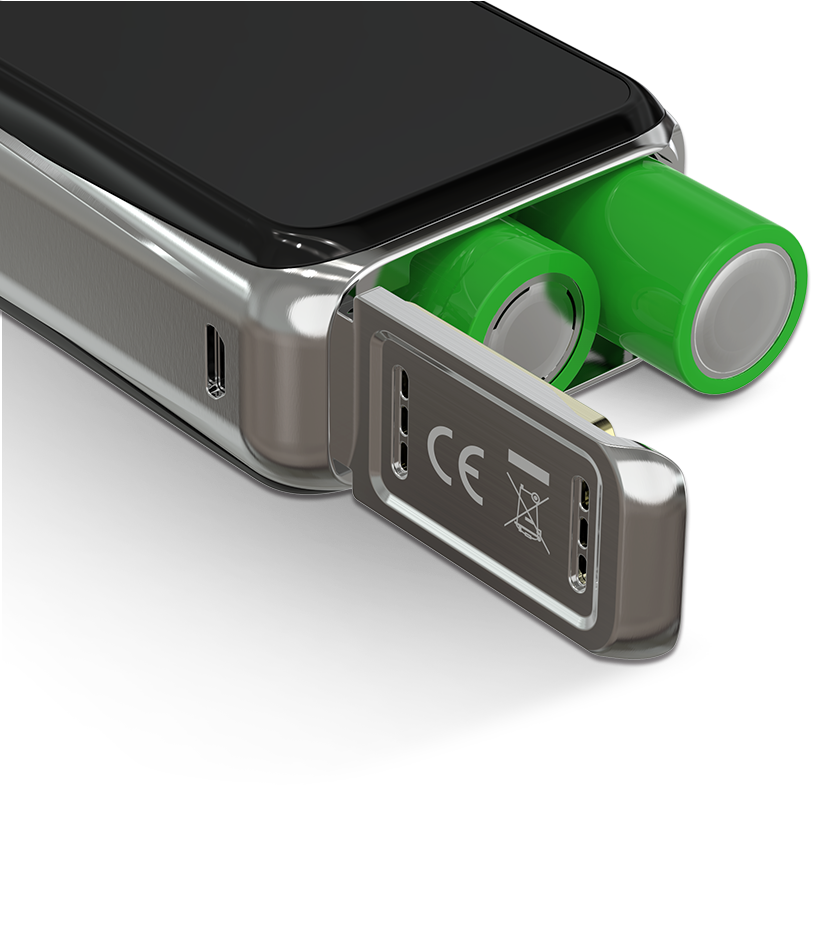

Charging
Please always use married high-rate 18650 cells, don't mix with different brands. The CUBOID Pro adopts equalizing charge system which supports
quick charge capability with max charging current up to 2.0A. Still you can also take out the cells and charge them in a stand alone charger.
